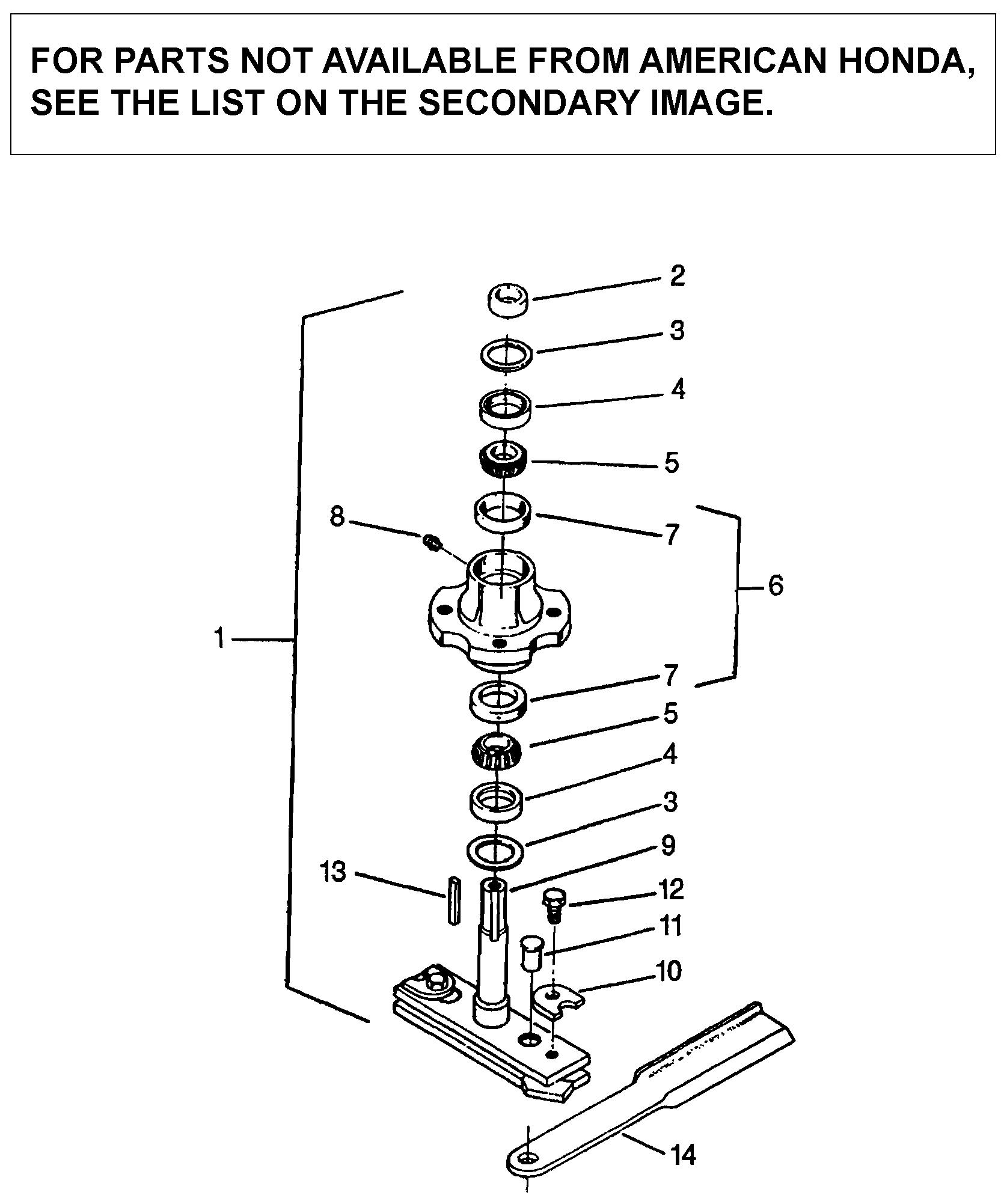

Lawn Tractor RM RM752 RM752A-DB3059 A -1000001-9999999 CW BLADE SPINDLE ASSEMBLY (RM752A-DB3059) - Tozier Brothers, Inc.

Ref No
Part Number
Description
Serial Range
Qty
Price

Ref No
1
Part Number
72995-0077
Description
SPINDLE, BLADE CW
Serial Range
1000001 - 9999999
Qty
Price
$893.40

Ref No
2
Part Number
72995-0078
Description
SLEEVE (1-3/8X1-3/4 X5/8)
Serial Range
1000001 - 9999999
Qty
Price
$33.92

Ref No
3
Part Number
72995-0079
Description
WASHER, FLAT
Serial Range
1000001 - 9999999
Qty
Price
$4.70

Ref No
4
Part Number
72995-0080
Description
SEAL
Serial Range
1000001 - 9999999
Qty
Price
$14.84

Ref No
5
Part Number
72995-0081
Description
CONE, BEARING
Serial Range
1000001 - 9999999
Qty
Price
$21.54

Ref No
6
Part Number
72995-0082
Description
HOUSING, SPINDLE
Serial Range
1000001 - 9999999
Qty
Price
$220.14

Ref No
7
Part Number
72995-0083
Description
CUP, BEARING
Serial Range
1000001 - 9999999
Qty
Price
$12.38

Ref No
9
Part Number
72995-0085
Description
SHAFT & CROSSBAR, SPINDLE
Serial Range
1000001 - 9999999
Qty
Price
$595.58

Ref No
10
Part Number
72995-0086
Description
WASHER, BLADE PIN RETAINER
Serial Range
1000001 - 9999999
Qty
Price
$4.22

Ref No
11
Part Number
72995-0087
Description
PIN, BLADE QD (NOT AVAILABLE)
Serial Range
1000001 - 9999999

Ref No
12
Part Number
72995-0088
Description
SCREW, NYLON HEX. CAP
Serial Range
1000001 - 9999999
Qty
Price
$2.28

Ref No
14
Part Number
72995-0032
Description
BLADE
Serial Range
1000001 - 9999999
Qty
Price
$157.30

Ref No
15
Part Number
72995-0033
Description
BLADE (NOT AVAILABLE)
Serial Range
1000001 - 9999999
Qty
Price
$64.84
